- Portable Fire Extinguisher
- Gas Cartridge Type
- ABC Powder Type

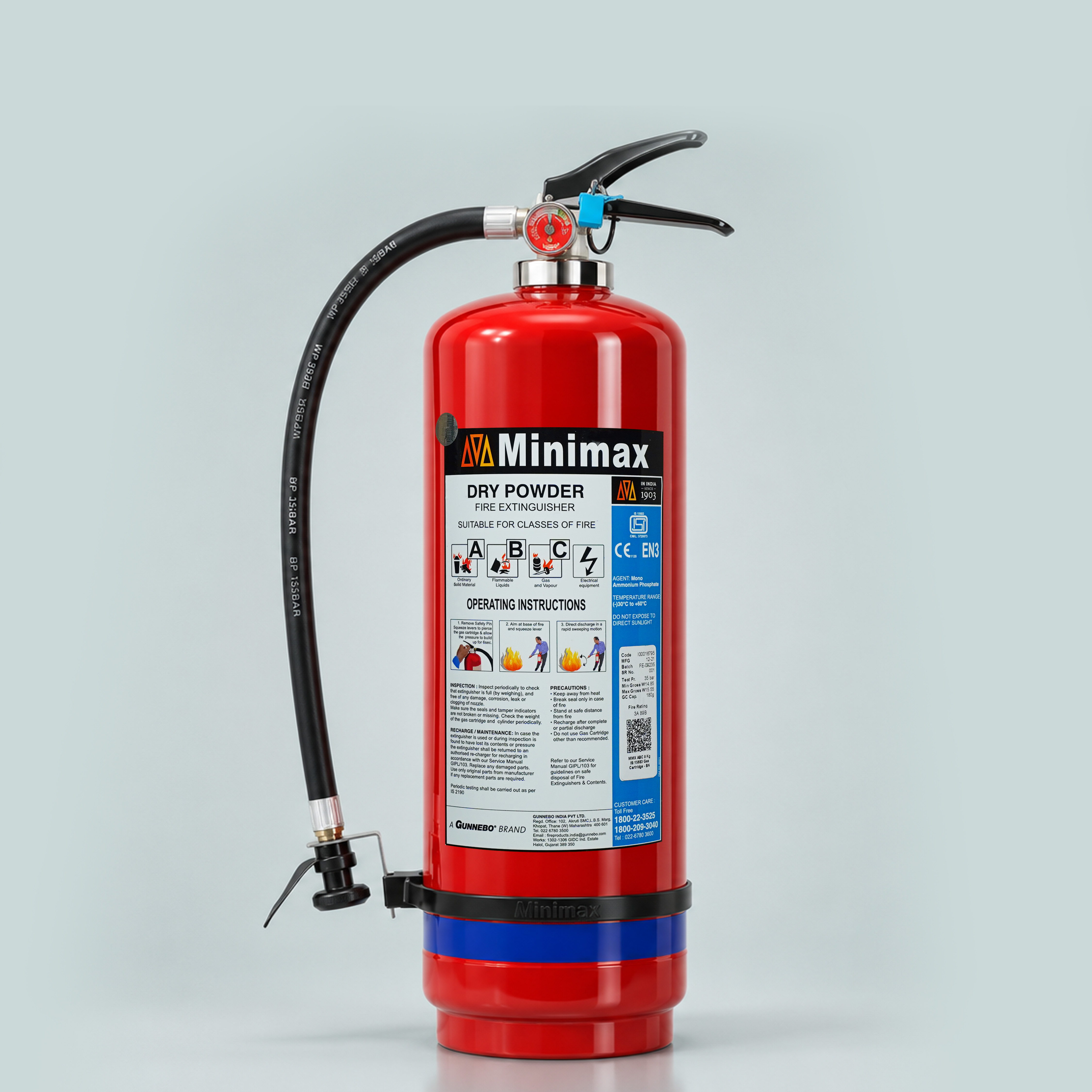

ABC Powder Type
Minimax ABC Powder Gas Cartridge Type extinguishers are preferred where the fire extinguishers are deployed in severe conditions - usually outdoor. They are preferred in industrial applications and enable quick and simple refilling after discharge.
ABC Powder is most versatile type of firefighting equipment, dry powder fire extinguishers are the most popular choice because of their capability for protection against light, ordinary and high Hazards. ABC dry chemical powder fire extinguishers are suitable for use on Class A (ordinary solids), Class B fires (flammable liquids) and Class C (gas and vapors) fires.
The ABC type Portable Gas Cartridge Type fire extinguishers can also be used on electrically actuated fires. Dry powder fire extinguishers carry a blue colour band which is clear and easy to see in the event of any emergency.
Minimax extinguishing agents undergo stringent quality checks ensuring the highest percentage of essential base ingredients found in the Fire Extinguisher industry.
Dry powder pressure fire extinguishers filled with silicon coated mono ammonium phosphate dry chemical powder with MAP 50% or MAP 90% as per standard requirements.
With a choice of portable gas cartridge type extinguishers, our range caters for all requirements.
Application Area
- Industrial plants
- Warehouses and logistics centers
- Commercial buildings
- Electrical rooms and generator areas
Enquire Now
For product: ABC Powder Type
- Technical Specification
- FAQ
| Specifications | 4 kg | 6 kg | 9 kg |
| Fire Rating - MAP 50 | 3A 55B | 3A 89B | 6A 144B |
| Fire Rating - MAP 90 | 3A 89B | 4A 144B | 6A 233B |
| Working Temperature °C | -30 °C to +60 °C | ||
| Burst Pressure | 55/80 bar min., 110 bar (actual) approx | ||
| Cylinder Testing Pressure | 35 bar | ||
| Min. Effective Discharge Time | 13 sec. | 15 sec. | |
| CO2 Gas Cartridge | 120 gms. | 180 gms. | |
| Charge | ABC Dry Powder (MAP50 / MAP90) | ||
Key Features
Multipurpose fire protection (A, B & C classes)
Gas cartridge system ensures consistent discharge pressure
High fire knockdown capability
Rugged design suitable for industrial use
