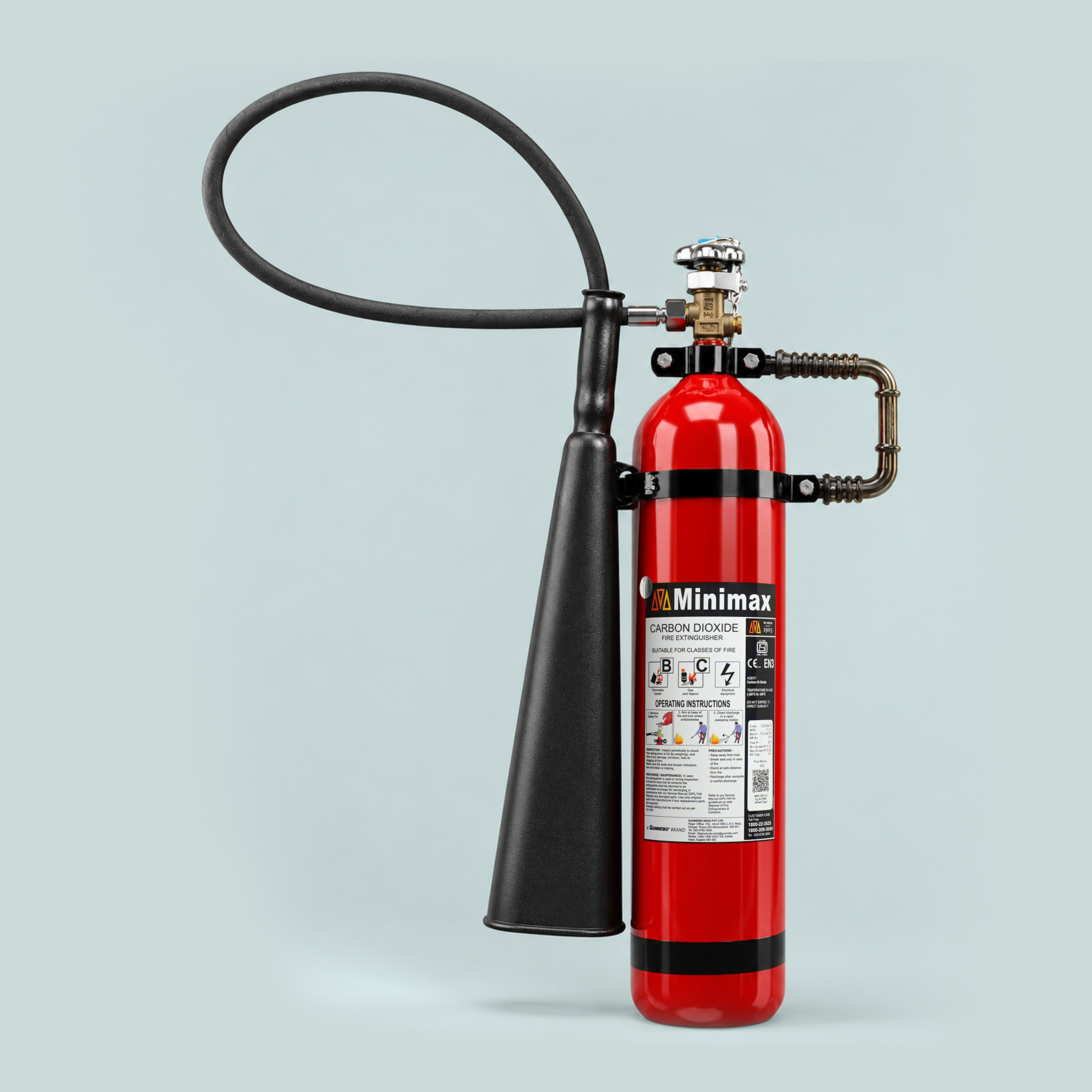

Carbon Dioxide Type MS Body

Minimax Carbon dioxide Type fire extinguishers are effective on Class B (flammable liquids) fires involving flammable liquids such as petrol, spirits and diesel and equally effective on electrically actuated fires. Carbon dioxide replaces oxygen in blazes and takes away the air, leaving a blaze to extinguish. These extinguishers are exceptional and highly preferred due to its reliability and no residue. Carbon dioxide fire extinguishers carry black colour coded band denoting the extinguisher type and contents to help quick identification in the event of a fire.

Carbon dioxide Type extinguishers become very cold while operating and present a danger to the safety of the operator. Minimax Carbon dioxide fire extinguishers are supplied with rubber grip and specially designed horn, taking away the chances of unwanted injury and cold burns. Discharge hose with conductive wires helps to dissipate the static that is generated in the horn due to high pressure.

Minimax Carbon dioxide fire extinguishers are filled in-house in Gunnebo’s own PESO approved filling station to ensure the highest level purity of the agent.

Application Area

  • Electrical substations and control panels
  • Generator rooms and UPS rooms
  • Industrial machinery areas
  • Workshops and manufacturing units
  • Laboratories

Enquire Now

For product: Carbon Dioxide Type MS Body

  • Technical Specification
  • FAQ
Specifications 2 kg 3 kg 4.5 kg
Fire Rating 21B 34B 55B
Working Temperature °C -30 °C to +60 °C
Burst Pressure 337.5 bar min., 350 bar (actual) approx
Cylinder Testing Pressure Min. 225 bar
Operating Pressure 50 bar
Min. Effective Discharge Time 8 sec. 13 sec.
Charge Carbon Dioxide Gas

Key Features

Heavy-duty mild steel cylinder construction

Residue-free fire suppression

Non-conductive and safe for electrical fires

High discharge efficiency with long hose & horn

Ideal for industrial and commercial applications
